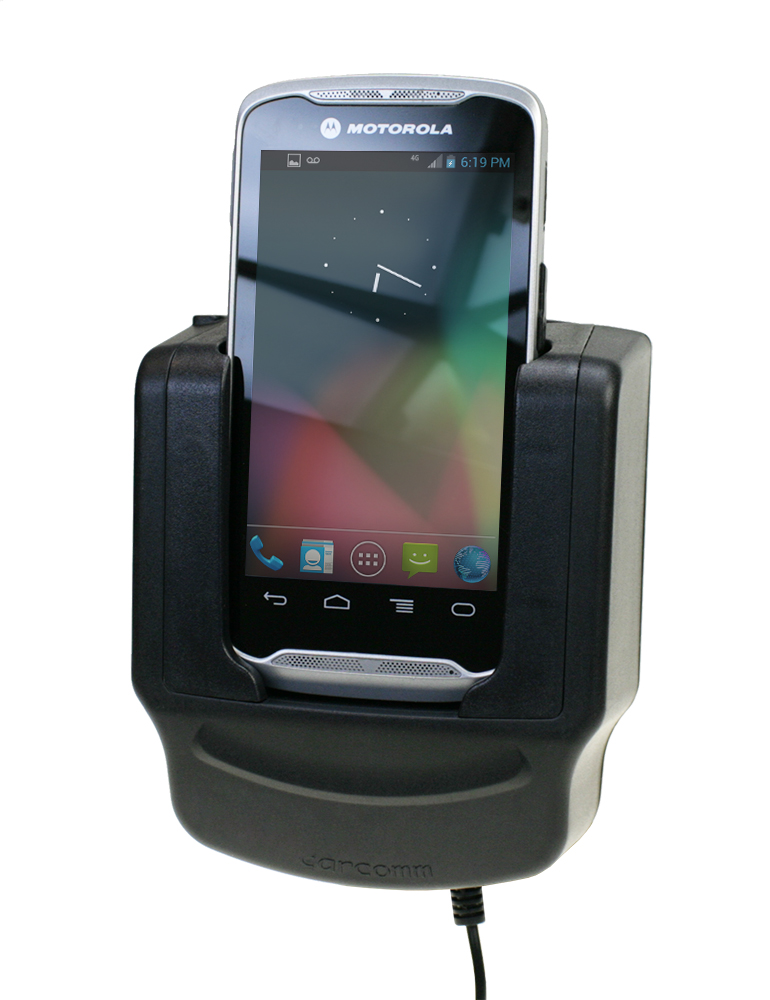

CarComm CREC-407 Active Vehicle Cradle Zebra TC55 with / without SG-TC55-BOOT
SKU: CREC-407 - Article No 43800407. The main function of the Active Vehicle Cradle is to power and charge your EDA while your on the move, and hold it securely into position under heavy use.
- 30-day money-back guarantee
- Free Shipping in UK Mainland
- BUY NOW, get in 1-2 days* to UK Mainland
- Competitive Shipping Rates to EU
- Worldwide Shipping*
- Also Available on Amazon UK & EU
The professional robust car holder
The Carcomm Active Vehicle Cradle is the perfect solution to integrate and use your Handheld Device / Mobile Computer in your vehicle. The unique and patented robust design of the active holder keeps your Handheld Device in place and protects it from being damaged. The perfect holder for the professional user, who want to integrate his HandHeld Device is his car, van, lorry, truck, bus or forklift.
Attached to the cradle is a 100mm cable with 6-Pin Molex Connector. Standard included is a 1,2m power cable with Molex 6-Pin and Cigarette Lighter Plug. An power cable for fixed installation is available as an option. The 3A automotive grade charging circuit, suitable for 12V and 24V,
which charges your handheld device, is integrated inside the vehicle cradle. The charger is specially developed for professional daily use where reliability and quality are essential. The charger keeps your device charged and ready for use in- and outside your vehicle.
The cradle is developed to ensure that the handheld device is kept in Tplace but is still easy to remove. This is achieved with special fixtures that keep the handheld device firmly seated on the cradle connector while driving on bumpy roads. This also protects the handheld device connector and cradle connector from being damaged.
High quality cradle connector
For an optimal connection, keeps the connectors from getting damaged.
Compatible with 12Volt and 24Volt
Suitable for use in cars and trucks.
Certified to be used in cars and trucks.
Suitable for permanent installation
Input voltage:12 - 24 Volt
Output voltage:5 Volt
Output current:Max. 2,5A
Dimensions ( b x h x d ):105 x 128 x 60 mm
Connections:Cigarette lighter adaptor
Article no: 43800209
Integrated charging system
By integrating the charging system into the cradle you can very easily built the cradle into your vehicle, you can simply order the optional fixed installation cable instead of the power cable with cigarettelighter plug and hard-wire the cradle into the vehicle.
Installing the cradle
To mount the cradle into the vehicle you can make use of the included rotating swivel-mount. This can be mounted in the vehicle with the included screws. There are also a variety of other mounting solutions available like for example dashmounts, safety-mounts and heavy-duty gooseneck mounts.

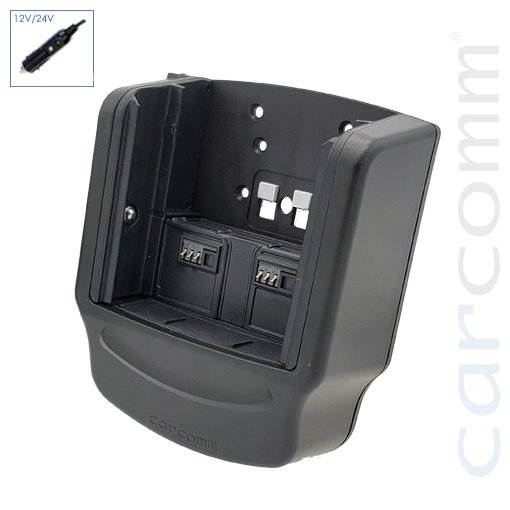

Active Vehicle Cradle
Active holder for your Handheld
Device with 100mm cable and 6-pin

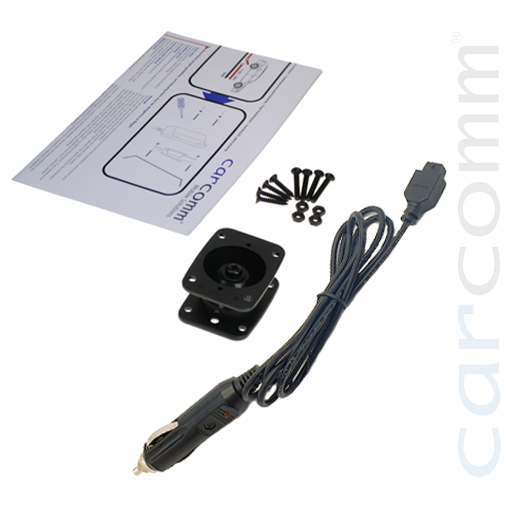

Used for fixed installation
1,2m Cable with 6-Pin Molex
Connector and Cigarette Plug
with 5A Fuse
- Screw Set 4pcs M3x10 with nuts
- Screw Set 4pcs 3x8
