Description

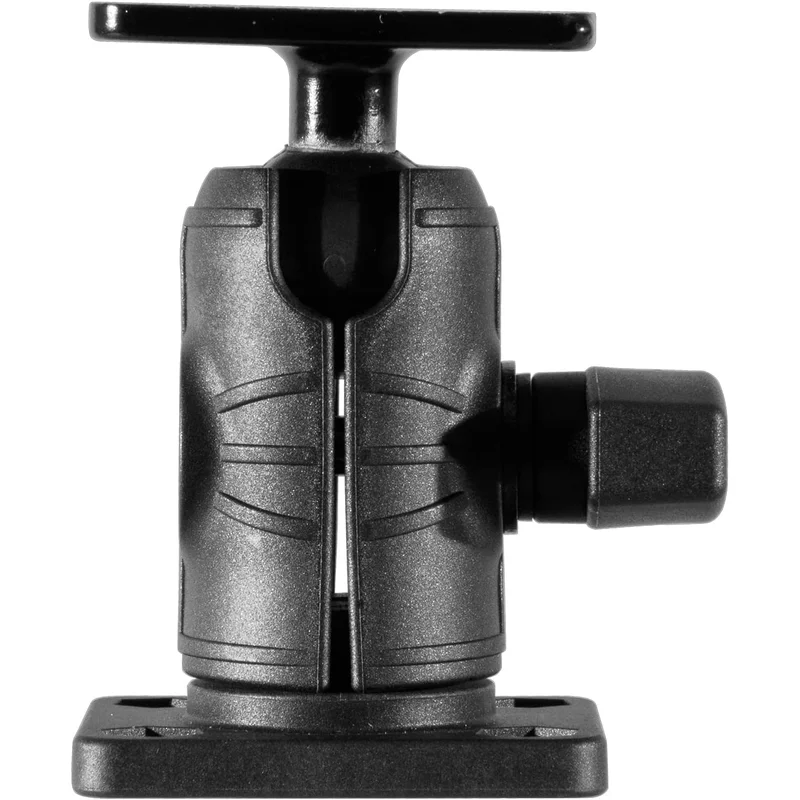

This iBOLT Single Ball Mount arm is made out of heavy-duty composite material, but features a metal 25mm ball AMPS plate to attach any industry standard AMPS pattern device holders, brackets, devices, and more.
LENGTH: The single ball mounting arm measures 2 inches end to end and 3.2 inches end to end with the ball adapters attached.
FEATURES: a 30mmx38 mm industry-standard 4 hole pattern (=AMPS) on both sides. The AMPS pattern consists of four holes located in a rectangular pattern spaced at 30.17mm x 38.05mm (measured as the center-to-center distance between holes). Simply drill this mount onto any flat surface for a secure hold.
COMPATIBILITY: Commonly used with IBBZ-33921 or IBBZ-33791 and the iBOLT Bizmount series or DynaMount Series mounts. Compatible with any other Industry standard 1-inch / 25mm / B Size Ball joints and “Octo”/ Octagon pattern adapters and arms.
INCLUDES: (1) Composite 2 inch 25mm socket to Octagon pattern arm, (1) Composite Octagon pattern to 4 hole Rectangular AMPS pattern drill base, and (1) 25mm / 1 inch Metal ball AMPS pattern adapter
